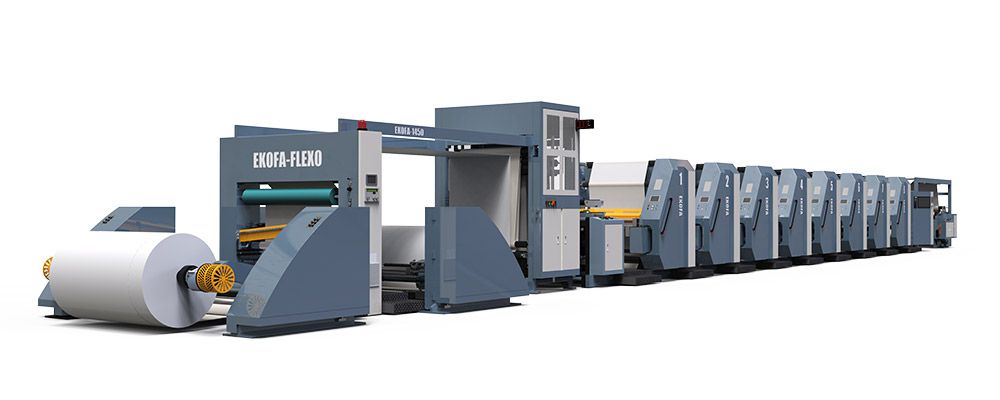

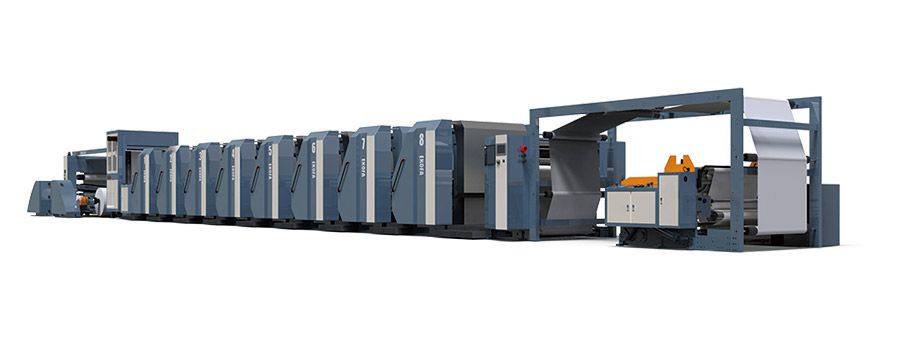

Flexo Printing Press, TF Series

In-Line Flexographic Printing Machine for Paper Printing

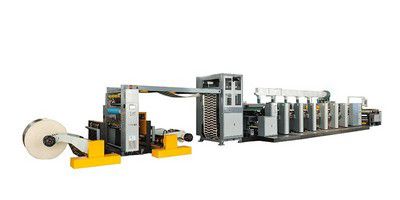

Inline Flexo Printing Press, TF Series
  • Printing Examples
  • Printing Examples
Inline Flexo Printing Press, TF Series Inline Flexo Printing Press, TF Series
Inquiry
  • Printing repeat: 600-1600mm/ 800-2000mm
  • Printing repeat (sleeve): 320-850mm/550-1600mm
  • Max. unwind diameter: 60" (1524mm)
  • Max. rewind diameter: 60" (1524mm)
  • Max. mechanical speed: 260m/min (850fpm)
  • Substrate: 40-150gsm/100-350gsm/40-450gsm (flexo sleeve type)

TF series in-line flexographic printing machine is specifically designed for printing on paper substrates, providing an ideal solution for a large variety of applications including paper cup blank printing, paper bag printing, food & beverage packaging printing, pharmaceutical box printing, and carton box pre-printing. This flexo printing press offers optional printing width ranging between 980mm and 2800mm, and the customizable repeat length range is available in 600-1600mm and 800-2000mm, or 320-850mm (flexo sleeve type). The flexo press can accept wider web width and do the job with results satisfying your high-grade printing needs.

Printing Examples

Printing Examples

Printed Paper Boxes

Printing Examples

Printed Paper Bags

Printing Examples

Printed Packaging Boxes

Printing Examples

Printed Paper Labels

Applications

  • Paper Cup Blank Printing
  • Paper Bag Printing
  • Food & Beverage Packaging Printing
  • Pharmaceutical Box Printing
  • Carton Box Pre-printing

Features

  • The design of upper web travelling enables printing process faster and more efficient;
  • Independently controlled drying unit is equipped at each printing unit, significantly increasing drying efficiency while solving the print defects which commonly occur in water-based ink drying process;
  • Adopting servo-driven motion technology allows to reduce machine vibrations and maintain high stability;
  • The pressure of plate cylinder and anilox roll is fully controlled by servo motor, offering accurate control and easy operation;
  • Remote fault diagnosis system provides operator with real-time machine running status, assisting users in quick troubleshooting to keep the machine running on a steady-state operation condition;
  • Automatic pre-register setting allows for faster machine make-ready with less paper waste, efficiently lowering the cost to a minimum;
  • Automatic butt splicer is used for non-stop unwinding and rewinding without slowing or stopping the process, greatly increasing production efficiency and reducing material waste;
  • Hydraulic clamping system is used in plate cylinder and anilox roll to make printing unit more stable and avoid banding defect;
  • Optional drying units are available in steam, natural gas and electric heating methods;
  • More configurations for your individual demands, such as automatic web threading unit, automatic cleaning unit, etc.;

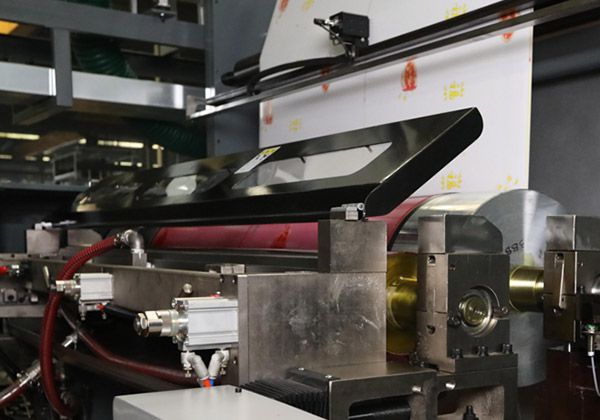

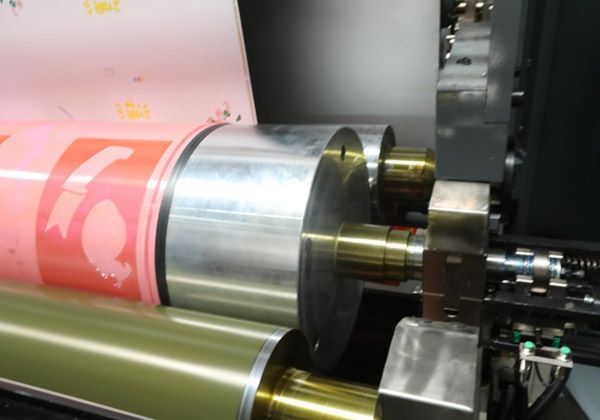

Details of Printing Unit

Details of Printing Unit
Details of Printing Unit

Model Options

EKOFA TF 1000
    1. Max. web width
      40.15" (1020mm)
    1. Max. printing width
      38.58" (980mm)
EKOFA TF 1100
    1. Max. web width
      44.88" (1140mm)
    1. Max. printing width
      42.52" (1080mm)
EKOFA TF 1300
    1. Max. web width
      51.57" (1310mm)
    1. Max. printing width
      49.21" (1250mm)
EKOFA TF 1450
    1. Max. web width
      57.87" (1470mm)
    1. Max. printing width
      55.51" (1410mm)
EKOFA TF 1650
    1. Max. web width
      67.32" (1710mm)
    1. Max. printing width
      64.96" (1650mm)
EKOFA TF 1800
    1. Max. web width
      71.65" (1820mm)
    1. Max. printing width
      69.29" (1760mm)
EKOFA TF 2200
    1. Max. web width
      86.97" (2260mm)
    1. Max. printing width
      86.61" (2200mm)
Inquiry
Other Products
Inline Flexo Printing Press, TH SeriesInline Flexo Printing Press, TH Series

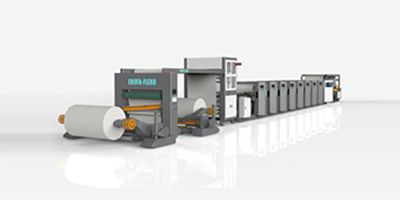

Servo Driven Inline Flexo Press, FY SeriesServo Driven Inline Flexo Press, FY Series
Inline Flexo Printing Press, HC SeriesInline Flexo Printing Press, HC Series
Inline Flexo Printing Press, SC SeriesInline Flexo Printing Press, SC Series
Inline Flexo Printing Press, SC SeriesCI Flexo Printing Press, MT Series

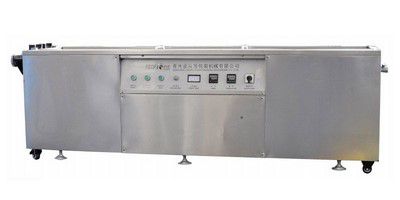

Ultrasonic Anilox Roll Cleaning MachineUltrasonic Anilox Roll Cleaning Machine
Flexo Plate Mounting MachineFlexo Plate Mounting Machine

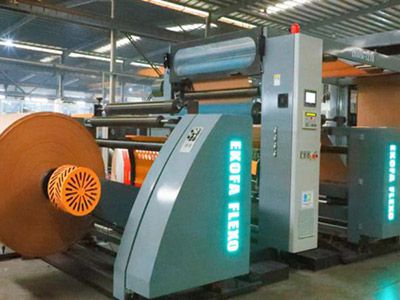

Other AuxiliariesOther Auxiliaries
