Flexo Printing Press, TH Series

In-Line Flexographic Printing Machine for Paper and Corrugated Board Printing

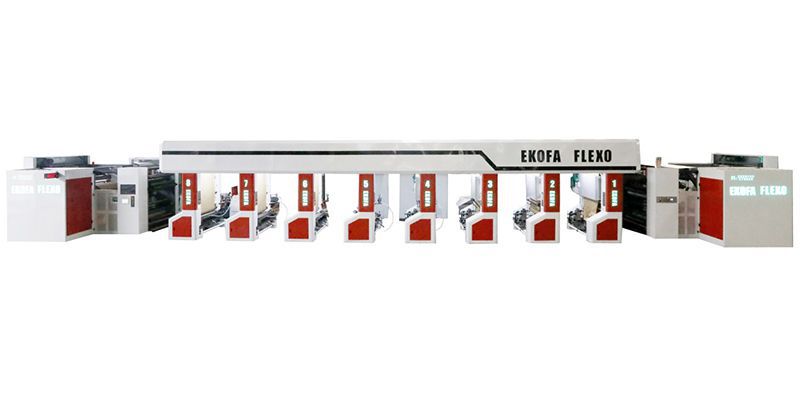

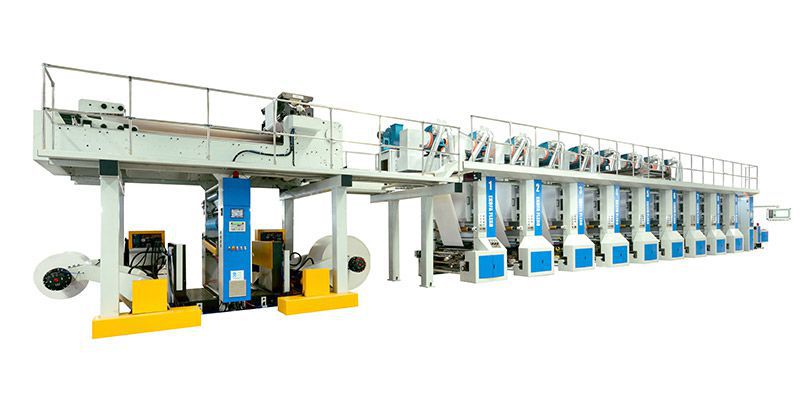

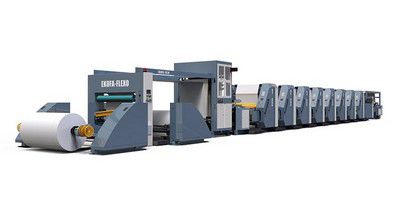

Inline Flexo Printing Press, TH Series
  • Printing Examples
  • Printing Examples
Inline Flexo Printing Press, TH Series Inline Flexo Printing Press, TH Series
Inquiry
  • Printing repeat: 500-1600mm
  • Max. unwind diameter: 60" (1524mm)
  • Max. rewind diameter: 60" (1524mm)
  • Max. mechanical speed: 260m/min (850fpm)
  • Substrate: 40-150gsm/100-350gsm

TH series in-line flexographic printing machine features a mechanical design that enables cylinder to be rotated in a reverse direction, this aims to keep operators safer. This in-line flexo press is typically suitable for food & beverage packaging printing, paper cup blank printing, paper bag printing, pharmaceutical box printing, and carton box pre-printing. The flexo printing machine can deliver a printing width range of 1000-1600mm and a repeat length range of 500-1600mm, able to handle printing operations for lightweight paper and corrugated board with premium printing quality.

Printing Examples

Printing Examples

Custom Printed Roll Labels

Printing Examples

Custom Printed Paper Bags

Printing Examples

Printed Paper Shopping Bags

Printing Examples

Printed Drink Cartons

Applications

  • Food & Beverage Packaging Printing
  • Paper Cup Blank Printing
  • Paper Bag Printing
  • Pharmaceutical Box Printing
  • Carton Box Pre-printing

Features

  • The design of upper web travelling enables printing process faster and more efficient;
  • Independently controlled drying unit is equipped at each printing unit, significantly increasing drying efficiency while solving the print defects which commonly occur in water-based ink drying process;
  • Adopting servo-driven motion technology allows to reduce machine vibrations and maintain high stability;
  • The pressure of plate cylinder and anilox roll is fully controlled by servo motor, offering accurate control and easy operation;
  • Remote fault diagnosis system provides operator with real-time machine running status, assisting users in quick troubleshooting to keep the machine running on a steady-state operation condition;
  • Automatic pre-register setting allows for faster machine make-ready with less paper waste, efficiently lowering the cost to a minimum;
  • Automatic butt splicer is used for non-stop unwinding and rewinding without slowing or stopping the process, greatly increasing production efficiency and reducing material waste;
  • Optional drying units are available in steam, natural gas and electric heating methods;
  • More configurations for your individual demands, such as gearless clamping unit, automatic web threading unit, automatic cleaning unit, etc.;

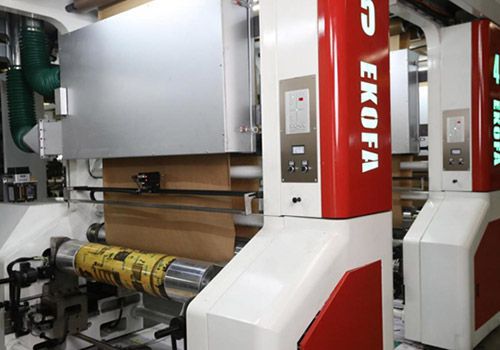

Details of Printing Unit

Details of Printing Unit

Model Options

EKOFA TH 1100
    1. Max. web width
      44.88" (1140mm)
    1. Max. printing width
      42.52" (1080mm)
EKOFA TH 1300
    1. Max. web width
      51.57" (1310mm)
    1. Max. printing width
      49.21" (1250mm)
EKOFA TH 1450
    1. Max. web width
      57.87" (1470mm)
    1. Max. printing width
      55.51" (1410mm)
EKOFA TH 1600
    1. Max. web width
      65.35" (1660mm)
    1. Max. printing width
      62.99" (1600mm)
Inquiry
