Flexo Printing Press
Flexographic Printing Machine for Narrow Web and Label Printing
- Max. unwind diameter: 40" (1016mm)/ 60" (1524mm)
- Max. rewind diameter: 30" (762mm)/ 40" (1016mm)/ 60" (1524mm)
- Max. mechanical speed: 152m/min (500fpm)
- Substrate: 20-100gsm/80-200gsm/150-350gsm
Our narrow web flexographic printing machine can print from 1 color up to 24 colors, it is designed for printing a huge variety of labels such as foodstuff labels, beverage labels, alcohol labels, pharmaceutical and medical labels, toiletries labels, health and beauty labels, clothing labels and pricing labels, as well as non-stretchable plastic films. This flexo printing press offers a printing width range of 260-680mm, and a repeat length range of 178-635mm. It can be placed in-line with various types of label converting equipment for flexible packaging and narrow web processing applications.
Printing Examples

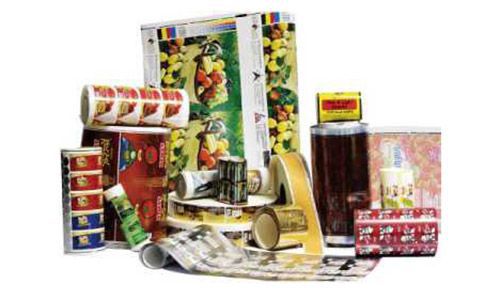

Custom Printed Roll Labels

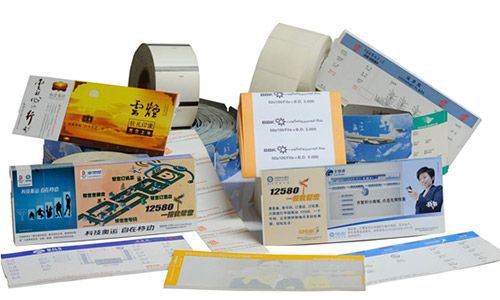

Custom Printed Event Tickets

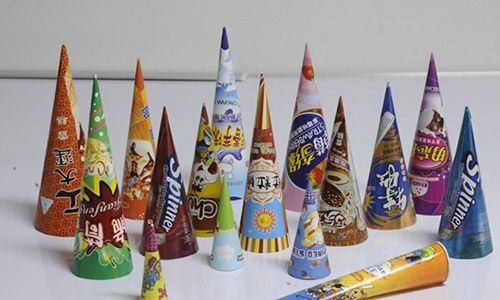

Printed Ice Cream Paper Cones
Applications
- Foodstuff Labels
- Beverage Labels
- Alcohol Labels
- Pharmaceutical & Medical Labels
- Toiletries Labels
- Health & Beauty Labels
- Clothing Labels
- Pricing Labels
- Non-stretchable Plastic Films
- Mailing Labels & Envelopes
- Shipping Labels
- Airline Luggage Tags
- Boarding Passes
Features
- Printing up to 24 colors, can meet various printing applications needs;
- The thickness range of substrate applied for printing can be between 20gsm and 350gsm;
- Fully automatic web guiding helps automatic guiding of a continuous web;
- The design of pull-out cassettes enables printing unit parts to be rapidly installed and replaced;
- High speed drying unit offers options of IR drying and hot air drying;
- Precise register in both longitudinal and transverse directions solves the needs of high quality printing;
- Stable and precise tension control system;
- Stroboscopic inspection system is adopted as standard configuration for real-time inspection of printing color and register results;
- Control console is easy to use;
- Unlimited expansion possibilities, this flexo printing machine can be placed in-line with various kinds of converting equipment;
- Second pass printing, gravure printing and screen printing are configurable optionally;
Details

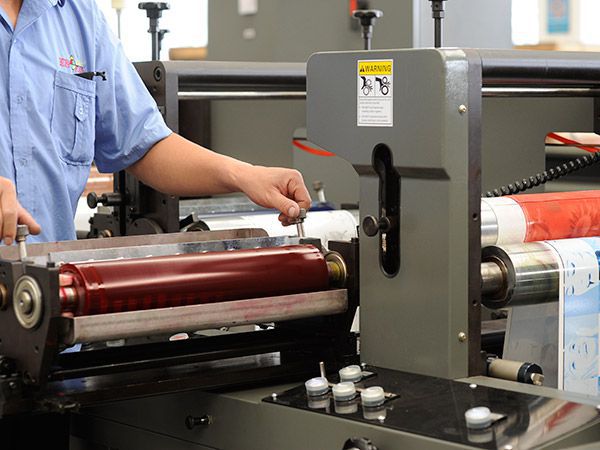

Printing pull-out cassettes

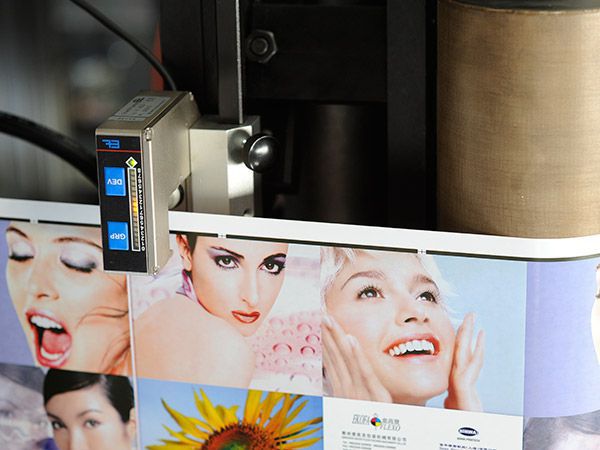

Automatic register

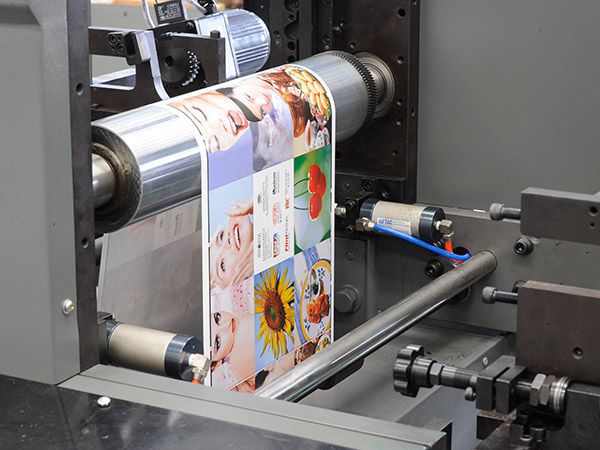

Narrow web printing

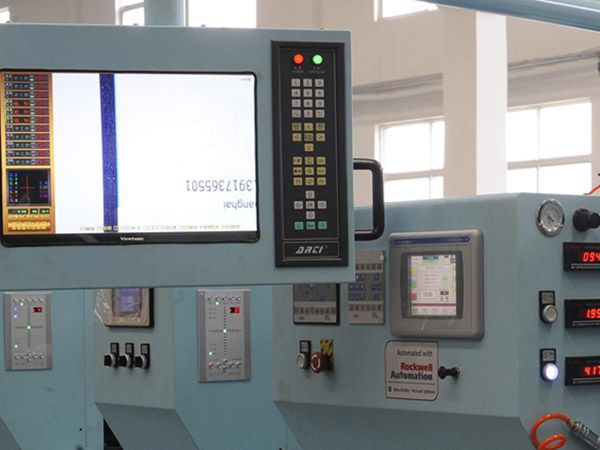

Stroboscopic inspection system

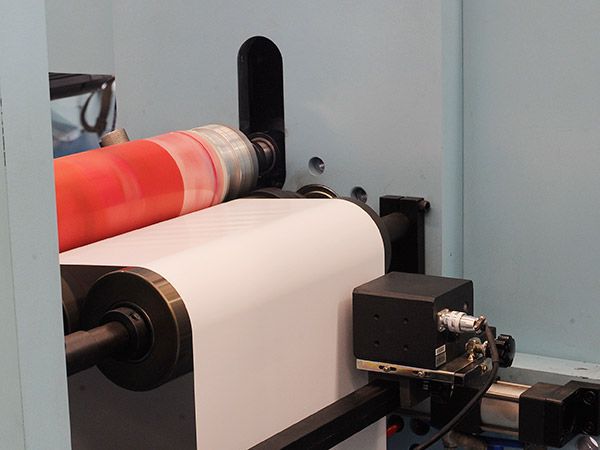

Automatic web guiding
Model Options
-
-
Max. web width
-
10.79" (274mm)
-
-
Max. printing width
-
10" (254mm)
-
-
Printing repeat
-
6.125"-20" (178-508mm)
-
-
Max. unwind diameter
-
40" (1016mm)
-
-
Max. rewind diameter
-
30" (762mm)
-
-
Max. web width
-
13.78" (350mm)
-
-
Max. printing width
-
13" (330mm)
-
-
Printing repeat
-
7"-20" (203.2-508mm)
-
-
Max. unwind diameter
-
40" (1016mm)
-
-
Max. rewind diameter
-
40" (1016mm)
-
-
Max. web width
-
17.32" (440mm)
-
-
Max. printing width
-
16.5" (420mm)
-
-
Printing repeat
-
8"-25" (203.2-635mm)
-
-
Max. unwind diameter
-
60" (1524mm)
-
-
Max. rewind diameter
-
60" (1524mm)
-
-
Max. web width
-
21.26" (540mm)
-
-
Max. printing width
-
20.5" (520mm)
-
-
Printing repeat
-
8"-25" (203.2-635mm)
-
-
Max. unwind diameter
-
60" (1524mm)
-
-
Max. rewind diameter
-
60" (1524mm)
-
-
Max. web width
-
24.41" (620mm)
-
-
Max. printing width
-
23.5" (600mm)
-
-
Printing repeat
-
9.5" -25" (241.3-635mm)
-
-
Max. unwind diameter
-
60" (1524mm)
-
-
Max. rewind diameter
-
60" (1524mm)
-
-
Max. web width
-
26.38" (670mm)
-
-
Max. printing width
-
25.5" (650mm)
-
-
Printing repeat
-
9.5"-25" (241.3-635mm)
-
-
Max. unwind diameter
-
60" (1524mm)
-
-
Max. rewind diameter
-
60" (1524mm)
EKOFA FLEXO is over 20 years of experience in the flexo printing industry. As an experienced flexographic printing machine manufacturer, we can design and produce advanced flexographic press systems that solve your need for the economic and reliable performance in the flexible packaging printing and converting industry. We are capable of offering packaging manufacturers and users from the printing industry with a variety of configurations to perfectly suit their specific tasks. Our printing systems are highly efficient and able to handle the entire press printing process including pre-printing, coating, drying, die cutting, slitting, etc. Our flexographic print solutions can bring added value to various applications in package converting. If you would like more information about our flexo presses and services, please feel free to email us or give us a call.
